Let’s be honest. When you first clapped eyes on the video of Disney’s free-roaming Olaf robot, you probably thought it was just another brilliantly executed animatronic, a charming but, deep down, rather straightforward piece of theme park wizardry. We’ve seen animatronics before, and while often impressive, they’re usually just puppets with a rather hefty price tag for their strings. As we briefly touched on before, Disney's AI Olaf Robot is Unnervingly Real , there’s far more to this particular snowman than meets the eye.
Thanks to a recently published paper from Disney Research, aptly titled “Olaf: Bringing an Animated Character to Life in the Physical World,” we now have the full schematics of the ridiculously intricate engineering tucked away beneath that perpetually cheerful, snowy exterior. This isn’t merely a puppet; it’s a 14.9 kg, 2ft 11in tall marvel of mechatronics, boasting 25 degrees of freedom. All of this is orchestrated by a sophisticated AI that has not only mastered the art of walking and emoting but, most impressively, learned how not to melt itself into a puddle of digital despair. Forget warm hugs; the real magic here is the thermal management.
A Design Hostile to Physics
The fundamental, rather barmy challenge for Disney’s Imagineers was that Olaf’s original design is, to put it mildly, an absolute nightmare for the laws of physics. Animated characters get to cheat, you see. They swan about with massive noggins on stick-thin necks, tiny feet that somehow defy gravity to support a wobbly torso, and a gait that prioritises personality over paltry concerns like momentum and the Earth’s relentless pull. To drag this into the real world, the team had to conjure a robot that could not only move like the character but also survive a good old brush with reality—and, more importantly, with excitable, curious children.
The solutions they cooked up are a masterclass in creative engineering. That iconic carrot nose? Held on by a magnet, so it simply pops off harmlessly instead of becoming a potential hazard. The entire body is wrapped in soft PU foam, providing a built-in, rather squishy, cushion. But the true genius, the real stroke of brilliance, lies in the legs—a problem that necessitated chucking conventional robotics design out the window entirely.
The Awkward Gait of Genius
To perfectly mimic Olaf’s signature waddle, where his feet appear to glide effortlessly along his spherical body, Disney’s boffins developed a pair of asymmetric, six-degree-of-freedom legs, cunningly concealed entirely within a foam skirt. This rather brilliant bit of mechanical misdirection creates the illusion of the character’s impossible movement, all while discreetly housing the powerful actuators required for stable locomotion.

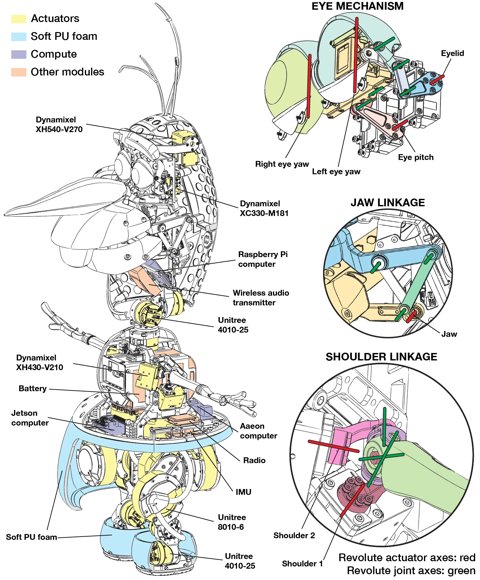

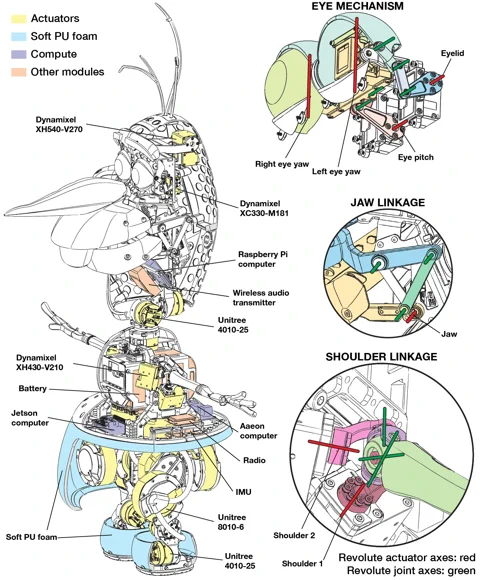

This ingenious design grants Olaf an incredible spectrum of expression. The legs can produce vertical motion, allowing him to subtly alter his height and emote in ways that would typically demand a separate, and rather ungainly, waist joint. It’s an elegant solution that manages to pack more character into fewer, more complex components. The entire mechatronic design, from the multi-jointed neck to the intricate eye and jaw linkages, stands as a testament to fitting immense capability into a constrained, character-driven form factor without a single compromise.
An AI That Listens for Stomping

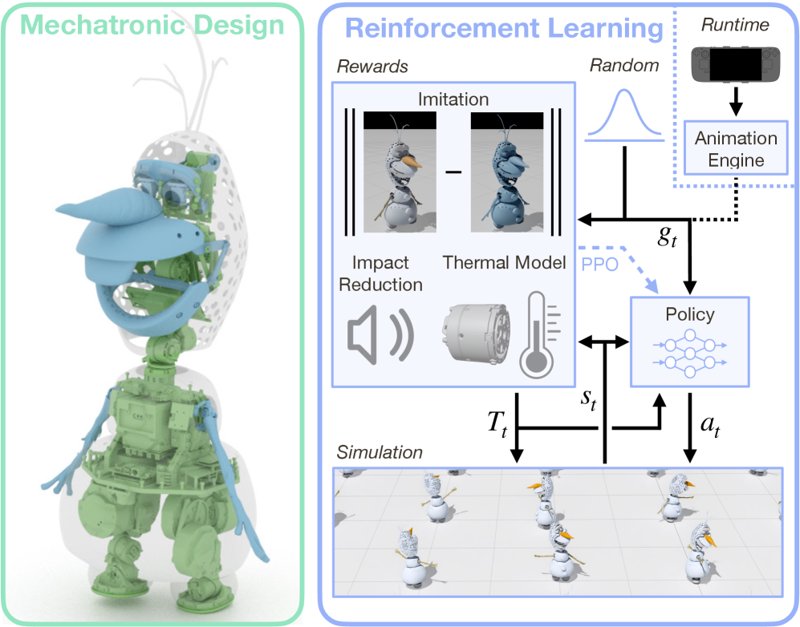

Building the body was only half the battle; programming it to behave was the other, equally formidable, half. Instead of being painstakingly hand-animated, Olaf’s movements are the product of reinforcement learning (RL), where an AI learns through good old trial and error in a virtual playground. But Disney’s team added a rather crucial twist: they baked real-world, aesthetic problems directly into the AI’s reward function. Now that’s clever.
Two of the biggest credibility killers for a robot are noise and heat. A clanking, stomping automaton hardly feels like a magical, frolicking snowman, does it? To tackle this, the engineers handsomely rewarded the AI for quieter footsteps. The result was a staggering reduction in footstep volume, plummeting from nearly 82 dB—the sort of racket a loud alarm clock makes—to a much more subtle and agreeable 64 dB. Spot on.
The other thorny issue was heat. The actuators in Olaf’s rather skinny neck, burdened with supporting a decidedly large head, were at serious risk of overheating, particularly when he held a pose looking upwards. So, the team slyly added actuator temperature to the AI’s learning objectives. The system learned to make subtle, almost imperceptible adjustments to its posture to keep temperatures well within safe limits, effectively preventing a full-blown thermal meltdown.
More Than a Snowman
What Disney has created with Olaf is far more than just the world’s most advanced theme park character. It’s a cracking blueprint for the future of human-robot interaction. It brilliantly demonstrates that the biggest challenges aren’t always about making a robot stronger or faster, but about making it more believable, safer, and acutely aware of its own physical limitations and its social context.
By translating abstract concepts like “don’t be noisy” and “don’t overheat” into mathematical rewards for an AI, Disney has truly bridged the chasm between raw engineering prowess and captivating character performance. The techniques pioneered here will undoubtedly shape the next generation of robots designed to gracefully walk among us, whether that’s in a bustling theme park or a quiet public square. So, the next time you see Olaf, by all means, appreciate the heartwarming smile, but do give a respectful nod to the brilliant, heat-managing, quiet-stepping AI that makes it all possible.
